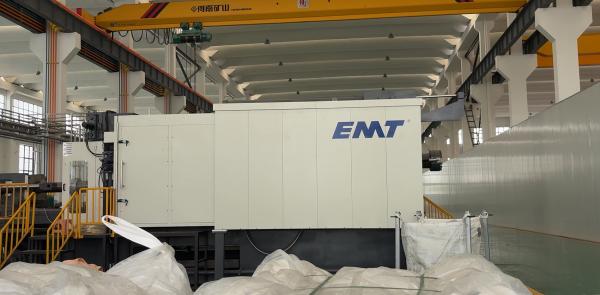

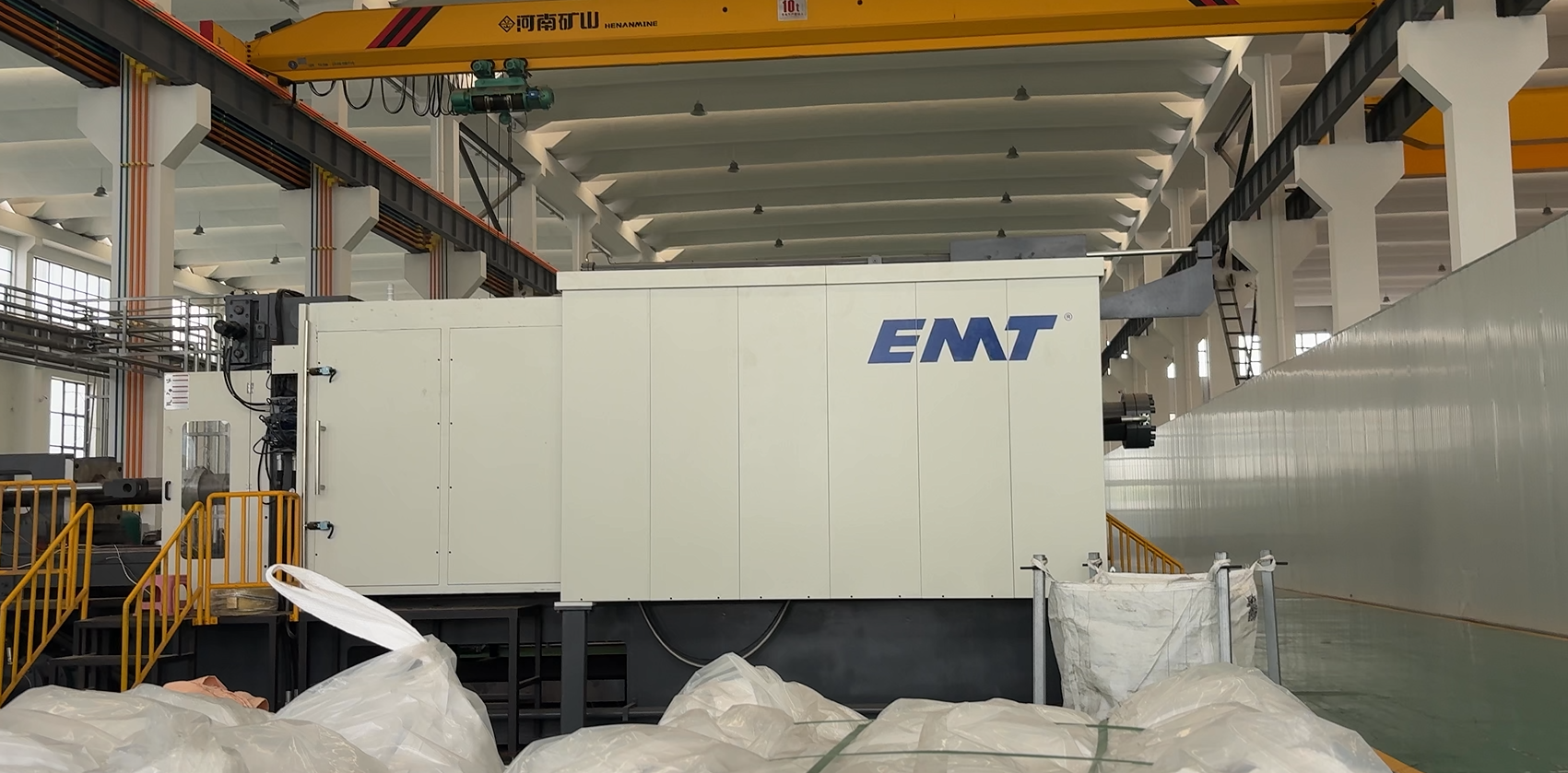

EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine

Brand Name : EMT

Model Number : MG-4000

Certification : ISO9001,IATF16949

Place of Origin : China

MOQ : 1

Mold Locking Force : 40000kN

Weight : 270000kg

Energy Saving : Yes

Control System : PLC control

Injection Speed : 5m/s

Material : Magnesium Alloy

Casting Method : High Pressure Die Casting

Die Height : 900-2100mm

Max. Casting Weight : 19.8kg

Injection Pressure : 100 MPa

Oem : Yes

Power Supply : 380V/50Hz

Warranty : 1 Year

Total Electric Capacity : 550 kW

Power Source : Electric

Product Type : Die Casting Machine

Injection Stroke : 600 mm

Operation Mode : Automatic

Operational : safety

Technology : Thixomolding

Contact Now

High-Performance EMT MG-4000 Magnesium Alloy Die Casting Machine for Products in 3C Electronics Aerospace and Automotive Industries
No. DESCRIPTION UNIT MG4000
1 Mold Locking Force kN 40000
2 Way Of Mold Installation - T-groove way
3 Screw Diameter mm 170
4 Injection Nozzle Inlet mm 180
5 Injection Nozzle Contact Force kN 1140
6 Systematic Operating Pressure MPa 16
7 Melting Servo Motor Power kW 100
8 Machine’s Overall Dimension (L×W×H) m 19×7.2×6
The EMT MG-4000 Magnesium Alloy Semi - Solid Injection Molding Machine is a high - performance core equipment independently developed by EMT. Precisely designed for the magnesium alloy semi - solid injection molding process, it is widely suitable for the production needs of high - precision and high - quality magnesium alloy products such as key automotive components, high - end electronic product casings, and aerospace precision components.
EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine

Integrating cutting - edge technology and innovative design concepts, this equipment is based on safety and stability, and also has significant advantages such as environmental protection and low consumption, high - efficiency output, and precision molding. It provides customers with reliable production solutions from research and development to mass production, helping to enhance product competitiveness.

Service industry:

  • 3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.

EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine

  • New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.

EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine

  • Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.

EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine

  • Medical field: surgical instruments, medical equipment, etc.

EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine

  • Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
